Sabvoton controller only design sine wave type controller so far, it’s brushless DC controller, 120 degree phase angle. Generally, we matched it well with QS Motor, if you want to match with new brand motor, some parameters should be tested by yourself.

Main Features:
1). Cost-effective
2). It can match with almost brushless BLDC motor
3). Programmable with regen function
4). Sine wave without noise, silence during the usage

Specifications:
1). DC Current Limit: 100A
2). Max. Phase Current: 250A
3). Protect Phase Current: 350A
4). Voltage: 48-72V rated, Max. 95V
5). Controller Size: 247*146*62mm
6). Net Weight: 2.2kg
7). Waterproof: IP54

Packing Items:

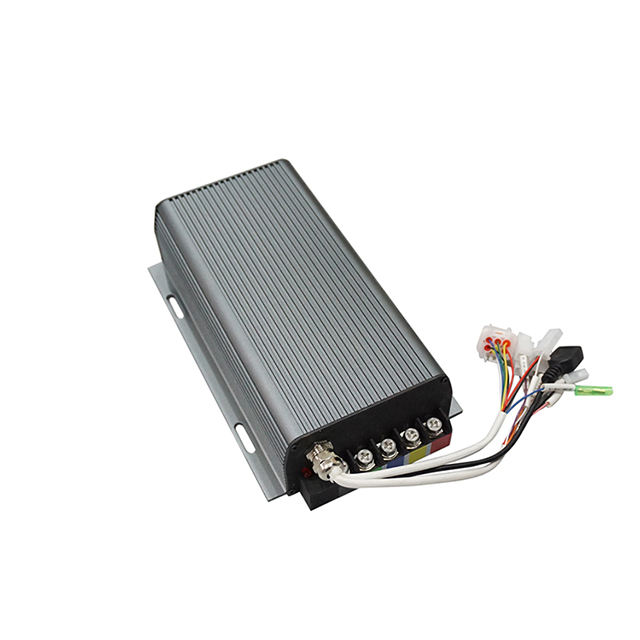

1. SVMC72100 Sine Wave Motor Controller
2. Computer type USB programmable Cable

Due to shipping restrictions, so we will no longer send bluetooth adapter with the controller, while you can use the USB programmable cable from computer side.
